Measuring a laundry alcove for a stacked washer and dryer is not a simple width check. A workable plan must fit the exact appliances, the approved stacking hardware, the hoses and duct, the open doors, the controls, the surrounding enclosure, and the space a technician will need later. A kit that fits the appliance cabinets can still be wrong for the room.
This guide explains how to measure that complete installation envelope before choosing the NIUXX W522 or any other stacking solution. It uses the current W522 product record for product-specific facts, while appliance manuals and local requirements remain controlling. The aim is a documented fit decision, not a promise that one nominal dimension makes two machines stackable.
Start with approval, not a tape measure
The first question is whether the two exact appliance models may be stacked together. Width, depth, and a physically plausible arrangement do not answer that question. Whirlpool tells owners to consult the installation manuals because measurements and stacking instructions vary, while Samsung says matching front-load models require the kit identified in both appliance manuals. Those are compatibility decisions, not suggestions that room dimensions can override.
Record the full model number from each rating plate, not a shortened family name from a sales page. Find the washer installation instructions, dryer installation instructions, and the approved stacking-kit information. If the documents do not authorize the pair, stop. Do not use the room survey to rationalize a combination that the manufacturers have not approved.
The same boundary applies to an adjustable third-party kit. The current NIUXX W522 listing describes an adjustable frame for compatible washers and dryers 56–69 cm wide. That range is a product dimension, not independent evidence that every appliance within it can be stacked. Both appliance manufacturers must permit the exact arrangement, and the lower washer must be designed to support the dryer.
- Write down the complete washer and dryer model numbers.
- Confirm that the dryer is intended to be above the washer.
- Confirm that both manuals permit the exact pair to be stacked.
- Identify any required model-specific kit, bracket, fastener, foot, or service procedure.
- Treat a missing or contradictory approval as a stop condition, not a measurement problem.
Only after approval is clear should you compare appliance geometry with W522 and the room. This order prevents a common planning error: investing time in a perfect alcove layout for a pair that should not be stacked in the first place.
Build one measurement sheet for the whole system
A useful survey keeps room dimensions, appliance dimensions, kit dimensions, and manufacturer-required clearances separate. Do not add them mentally while standing in the doorway. Create a written sheet with the source beside every number. Mark whether each value came from a manual, a product record, a direct measurement, or a conservative planning allowance that still needs confirmation.
Measure the appliance cabinets at their widest, deepest, and tallest fixed points, then identify projections. Door handles, control panels, hinges, rear fittings, leveling feet, and trim can extend beyond the basic cabinet. For a dryer, include the installed duct path or condensate arrangement specified for that model. For a washer, include fill hoses, drain hose, valves, plug, and any required drain pan.
| Measurement layer | What to record | Why it matters |
|---|---|---|
| Appliance pair | Cabinet width, depth, height, feet, handles, doors, controls, rear connections | Defines the physical stack before room clearances |
| Approved stacking interface | Required kit, contact points, brackets, feet, pads, strap route, installed thickness | Confirms how the dryer is supported and restrained |
| Room shell | Narrowest width, usable depth, finished height, trim, doors, shelves, thresholds | Finds real obstructions instead of relying on nominal room size |
| Utilities and airflow | Water, drain, power, gas if applicable, exhaust or condensate path, ventilation openings | Prevents pinched, inaccessible, or noncompliant connections |
| Operating envelope | Appliance doors, controls, filter access, detergent drawer, W522 rail travel | Shows whether normal use is possible after installation |
| Service and route | Delivery path, lifting space, rear access, shutoff access, removal path | Allows safe installation, inspection, and future repair |
Use one unit system throughout the sheet and retain the original manual units in parentheses where useful. Conversions can introduce rounding mistakes, particularly around a tight opening. Record values rather than drawing a line at an approximate position. A clear worksheet also gives an installer something objective to review before arrival.
Measure the alcove at more than one point
Walls, floors, trim, and cabinets are not always square. Measure clear width near the front, middle, and rear of the intended appliance position. Repeat at low, middle, and high levels because a baseboard, side cleat, door stop, or cabinet face may create the narrowest point. The governing room width is the smallest usable measurement, not the largest opening you find.
Measure finished height from the actual floor surface to the lowest fixed obstruction. Check both front and rear. An overhead cabinet may be level while the floor slopes, or a cabinet light rail may hang below the main cabinet box. Include any trim, hinge, pipe, sprinkler component, or shelf that the stack or installer could contact.
Depth requires similar discipline. Measure from the front plane you need the appliances to respect to the first rear obstruction. Then map the space used by valves, outlets, plugs, drain standpipe, duct connection, baseboard, and wall fittings. A deep recess is not fully usable when plumbing projects into the appliance zone.
- Clear movable storage and measure only the permanent room shell.
- Record the narrowest finished width at several heights and depths.
- Record finished height at the front and rear.
- Map every fixed rear and side projection on a simple plan view.
- Measure the doorway, corridor, turns, and threshold on the delivery route.

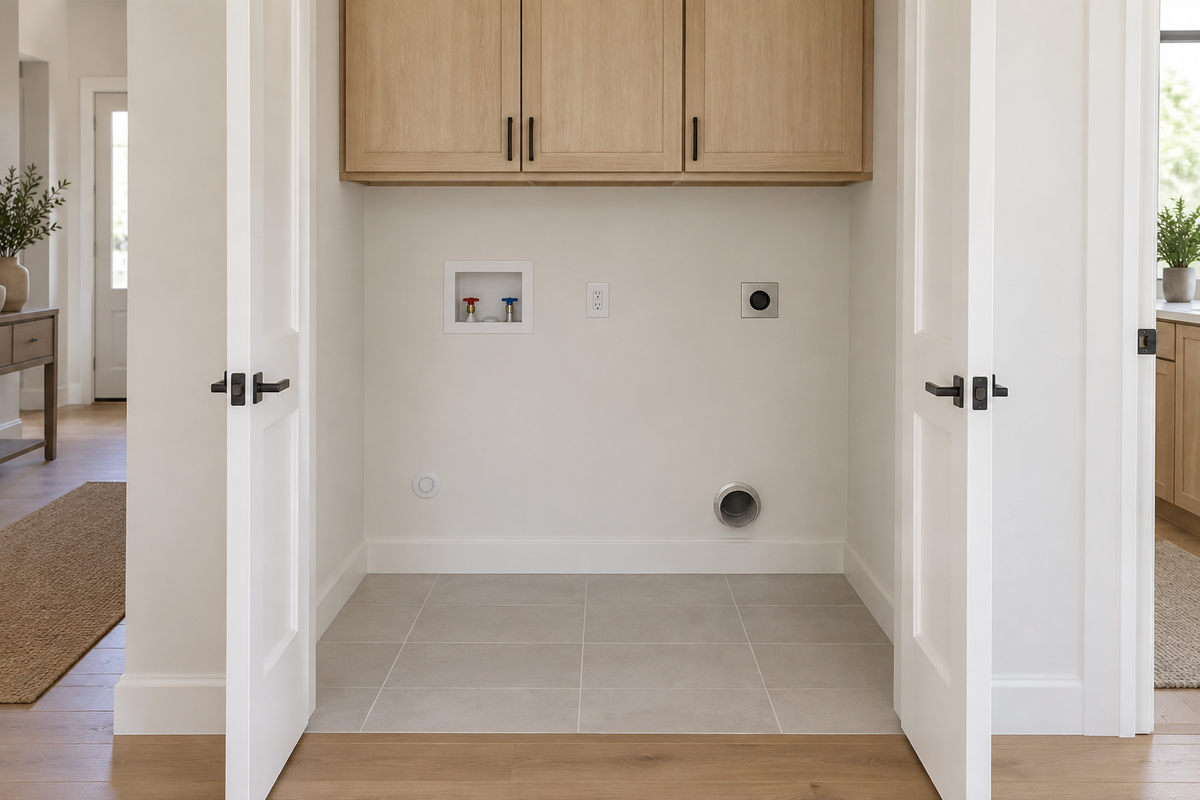

- Photograph the empty space and utility wall for installer review.
Do not subtract a generic clearance from a generic alcove dimension. Compare the exact room with the exact manuals. Whirlpool gives example closet guidance on its stacking page, but it also states that requirements vary by model and brand. Maytag likewise presents typical ranges while directing readers to model-specific information. Those values are useful prompts, not substitutes for your documents.
Calculate width from support geometry, not cabinet labels
The W522 listing gives a compatible appliance-width range of 56–69 cm. That number should be compared with the dimension and contact geometry specified for the approved installation. A washer advertised as a nominal class size may have a cabinet, top panel, or control console that differs from the number used in marketing. Measure the physical unit and verify the manual drawing.
Look beyond overall width. The frame and its pads need to meet the approved support areas without covering openings, controls, service panels, or unstable trim. The dryer feet or specified stacking points must be handled exactly as the appliance and kit instructions require. A cabinet can fall inside the listed range while its support points do not suit the frame.
Next calculate room width. Start with the installed appliance and kit envelope, then add every side clearance required by the washer manual, dryer manual, closet instructions, and local rules. If the W522 rails will be used, add their full extension on the relevant side or sides. Do not assume the rails may project into a wall, door, sink, cabinet, or walking route.
Samsung currently advises users to measure the room and consult the model listing or manual for specifics. Its general installation guide also identifies space for ventilation, wiring, water, drainage, and free door movement. Those categories belong on the worksheet even when another brand supplies your appliances; the actual numerical requirements must still come from the exact models.
Calculate height as an installed stack
Total height is not simply washer height plus dryer height. Add the installed thickness of the approved interface, any retained or replaced feet required by the instructions, leveling adjustment, a permitted drain pan or base if present, and the overhead clearance required by the manuals. Never add a pedestal or base under a stack unless the appliance manufacturer explicitly allows that complete arrangement.
The W522 product record lists product dimensions of 40 × 31 × 13 cm, but those are not automatically the installed separation height. Packaging orientation, projecting rails, and the final supported interface can differ from a simple product-box dimension. Use the installation instructions and a dry fit to establish the installed contribution instead of inserting 13 cm into the height equation without evidence.
Check reach as well as fit. A dryer control panel can be physically below the ceiling yet difficult for the intended user to see or operate. Maytag advises considering comfortable access to top controls when measuring a stacked pair. Treat reach as a household usability question and an installer discussion, not as permission to alter an approved stack.
Overhead cabinets must remain usable without striking the dryer, its door, or an extended rail. If a cabinet must be opened before the dryer door, record the sequence. If the cabinet blocks removal of the dryer for service, the apparent storage gain may create a long-term access problem. A few spare centimeters can be more valuable than a tightly filled vertical opening.
Calculate depth for hoses, duct, and door swing
Depth is where many paper plans fail. Appliance specifications may list cabinet depth without an open door, handle, plugged cord, hose bend, or dryer duct. Use the dimensional drawings and installation instructions to distinguish cabinet depth, overall closed depth, open-door depth, and required rear space. Record all four when the documents provide them.
Whirlpool's general stacking guide says to leave working room behind the washer during installation and to follow exact model instructions. Maytag explains that rear space is needed for hoses and ventilation, while its numerical ranges are typical rather than universal. The safe method is therefore simple: use the exact manuals and route each connection without flattening, pinching, stretching, or sharply bending it.
For a vented dryer, include the actual exhaust configuration permitted by the dryer manufacturer and applicable local rules. A flexible route that looks compact in a sketch may occupy more depth after the appliance is moved into position. For a ventless dryer, include the specified condensate drain or tank access and the room ventilation requirements. “Ventless” does not mean “clearance-free.”
Open both appliance doors on the plan. The door edge, handle, hinge, and user standing zone all need room. Check whether an opposite wall, sink, closet door, or projecting counter interferes. If the dryer door can be reversed, use only the approved procedure for the exact model; do not assume every door is reversible.
Add the W522 rail movement envelope
The W522 has two telescopic towel rails, each listed for up to 3 kg. For a measurement plan, their most important fact is not the load figure but the space they occupy while moving and while temporarily supporting items. Measure their full permitted extension after the frame is adjusted to the actual appliance width. Confirm that a rail can extend and retract without touching walls, cabinet hardware, doors, hoses, or people passing the stack.
Draw the retracted and extended positions separately. A rail that clears a closed closet door may collide with the door when both are open. A rail that clears the dryer cabinet may cross the washer door path or the user's knees. If only one side of the alcove has open space, confirm that the intended rail arrangement and installation instructions support the planned use.
Keep the rail load question separate. The merchant record says up to 3 kg per rail, but it does not state that both rails may be loaded to their listed maximum simultaneously in every installation. It also does not convert wet laundry into a predictable weight. Follow the supplied instructions, use conservative temporary loads, and choose a separate drying rack if clearance or load is uncertain.
The rails should not become handholds, steps, lifting points, permanent shelves, or substitutes for service space. A measurement drawing should label them as moving accessories so nobody later installs a cabinet, hook, bin, or door stop inside their path.
Map every utility before choosing the final position
Mark hot and cold water valves, fill connections, drain point, receptacles, gas shutoff if applicable, dryer exhaust, condensate route, and any local disconnect. Record the height and horizontal offset of each point from fixed room references. A utility hidden behind the completed stack may be impossible to inspect or shut off quickly.
Trace the path from each appliance connection to the wall, not just the endpoints. Hoses and cords need a permitted bend radius, protection from sharp edges, and enough length for installation without being stretched. They must not be trapped by the stacking frame, strap, side rails, cabinet, or moving appliance door. Follow each appliance manual and use qualified trades where required.
Samsung's general washer guidance calls for adequate room for wiring, water-supply hoses, the drain hose, and ventilation. It also emphasizes a firm, level surface and model-specific instructions. These are separate checks: a room can have enough geometric space but still be unsuitable because the floor, utilities, drain arrangement, or ventilation does not meet the manuals.
Keep water connections and the drain visible or reasonably accessible for inspection. Do not plan to use a rail, strap, or frame member as a routing clip unless the instructions expressly provide that function. If the final position hides a valve or requires dismantling cabinetry to reach a leak, revise the layout before installation.
Check closet ventilation and the front working zone
A closet door changes the calculation. The door itself needs a full opening path, and the enclosure may require specific ventilation openings. Whirlpool notes that closet installations can require top and bottom air openings, while Maytag similarly tells users to preserve side and rear space and air circulation. Exact requirements depend on the appliances, dryer type, enclosure, and local rules.
Do not count an open door during use as permanent ventilation unless the approved instructions say that is acceptable. Do not block required openings with baskets, hanging clothes, cabinetry, or an extended W522 rail. If the room has a mechanical exhaust fan, that does not automatically replace appliance or closet requirements.
The front working zone needs space for loading, unloading, filter service, detergent access, door swing, and safe lifting during installation. It also needs a clear exit route. Measure from the appliance front at its final depth, not from the empty alcove wall. Include any opposing counter, toilet, sink, stair, or swinging room door.
A useful test is to draw three front zones: normal use, rail extension, and service removal. If those zones overlap a permanent obstruction, the installation may technically fit while remaining impractical. The correction is usually a layout change, not a promise to “be careful” forever.
Measure the delivery and installation route
The finished alcove is only the destination. Measure every doorway, hallway, corner, stair landing, elevator, and threshold between the delivery entrance and the laundry space. Include door hardware, handrails, trim, ceiling changes, and the turning radius at corners. Compare the route with the packaged and unpackaged dimensions permitted by the delivery and installation plan.
Stacking normally requires the dryer to be lifted onto the washer with suitable help or equipment. The installer needs standing room, hand clearance, and space to place and secure the kit without improvising. Whirlpool's general guide includes another person among the needed resources, but the exact handling plan should reflect the appliance weight, route, and installer requirements.
Do not plan to assemble a stack elsewhere and roll or carry the connected pair through the home unless both manufacturers and the kit instructions explicitly authorize that procedure. The safer documented sequence is commonly to position and level the washer, install the approved interface, lift the dryer, secure it, complete utilities, and commission the system in accordance with the manuals.
Keep the future removal route in the drawing. A stack trapped behind a new door frame or cabinet can make routine service disproportionately difficult. If a technician cannot reach connections or safely remove the dryer, revise the room before the first installation.
Use a dry-fit review before installation day
A dry-fit review combines documents, measurements, and simple physical checks without operating or stacking the appliances. Mark the proposed front line on the floor with removable low-tack tape if the finish allows it. Use cardboard templates for the closed appliance footprint, open-door arc, and extended rail envelope. Do not build a mock support or place weight on an uninstalled kit.
Stand where the user will load each machine. Check control visibility, door reach, filter access, detergent drawer travel, and the path to baskets. Open the closet and room doors in the combinations that can occur. Confirm that a person can step back safely and that an extended rail cannot trap someone between the appliance and another surface.
Review the plan with the installer before delivery when possible. Provide model numbers, manual links, photographs, the measurement sheet, and a utility sketch. Ask the installer to confirm the approved kit, lift plan, duct or condensate plan, electrical and plumbing scope, and any work that requires another qualified trade.
- Verify the narrowest room width and lowest overhead point.
- Verify closed depth, open-door depth, and required rear service space.
- Verify utilities remain accessible and follow their approved routes.
- Verify closet ventilation is not blocked by doors, storage, or rails.
- Verify the installation and future service routes.
- Verify that W522's full rail movement remains outside doors and walkways.
If any dimension is close, remeasure it independently. A second reading made from the same convenient reference can repeat the same error. Use fixed finished surfaces, note the measuring tool, and record the date because flooring, trim, cabinetry, or utilities may change before installation.
Know what the W522 record does and does not prove
The current NIUXX W522 product record identifies a 56–69 cm appliance-width range, durable plastic and stainless-steel construction, installed sponge pads, a polyester ratchet strap, and two telescopic rails. Each rail is listed for up to 3 kg. The record also lists product dimensions of 40 × 31 × 13 cm and a product weight of 2 kg.
Those statements support a product comparison, but they do not prove exact appliance approval, structural capacity of the lower washer, correct restraint tension, combined rail loading, room ventilation, installation-code compliance, vibration reduction, guaranteed stability, or a safety outcome. Promotional images can clarify visible parts and geometry, but they are not a substitute for manuals, engineering approval, or a qualified installation.
The practical purchase question is therefore conditional. W522 may be a candidate when both appliance manufacturers approve the pair, the measured appliance width falls within 56–69 cm, the support geometry suits the approved installation, the frame and restraint match the instructions, and the room has enough clearance for doors, utilities, airflow, rails, use, and service.
If the exact appliances require a model-specific manufacturer kit, follow that requirement. If the alcove is too narrow for a rail to extend, choose a solution without that accessory or redesign the room. An adjustable width feature cannot correct a blocked duct, inaccessible valve, weak floor, prohibited stack, or inadequate service path.
Make a final fit decision
Classify the project as approved, unresolved, or unsuitable. “Approved” means the appliance documents authorize the pair and kit, every measured envelope fits with required clearances, utilities and airflow comply, the floor is suitable, installation is feasible, and service access is preserved. Keep the completed sheet and manuals with the appliance records.
“Unresolved” means a necessary fact is missing: a manual does not identify the kit, installed interface thickness is unclear, rail extension is unknown, a utility route is uncertain, or the installer has not confirmed the lift plan. Resolve the missing fact before ordering or scheduling. Do not replace it with a typical measurement from another brand.
“Unsuitable” means a controlling requirement fails. Examples include an unapproved appliance pair, a top-opening lower machine that would be obstructed, contact points outside the frame's supported geometry, inadequate required ventilation, a blocked shutoff, a rail that enters a doorway, or no safe installation route. Change the equipment or room plan rather than forcing the fit.
When the project remains a candidate, review the current NIUXX W522 product page alongside both appliance manuals. Use the 56–69 cm range as one verified comparison field, then confirm the complete approval and clearance chain before purchase or installation.
Frequently asked questions
How much width should I add around a stacked washer and dryer?
Use the exact washer and dryer installation instructions, closet instructions, and applicable local requirements. General manufacturer articles publish example allowances, but the values vary by model, brand, dryer type, and enclosure. Add the W522 rail extension separately if the rails will be used; do not count required appliance clearance as rail space.
Is the W522 56–69 cm range enough to confirm fit?
No. It is the listed appliance-width range for the kit. You still need approval for the exact washer-dryer pair, suitable support geometry, the required stacking method, a lower washer designed to support the dryer, and a room that accommodates utilities, doors, ventilation, rails, installation, and service.
Should I use the W522 product height as installed stack height?
Not without installation evidence. The listed 40 × 31 × 13 cm product dimensions do not by themselves define the installed separation between two appliances. Use the approved instructions and confirmed interface geometry, including any required feet or brackets, when calculating total installed height.
Do I need to measure with the appliance doors open?
Yes. Record closed depth, open-door depth, and the user's working zone. Check the washer door, dryer door, closet door, room door, detergent drawer, lint-filter access, and any nearby cabinet. A pair that fits only with every door closed is not a complete operating plan.
How do the W522 rails change the room measurement?
Add the full permitted extension and the temporary item envelope on each side you intend to use. Check the rails against walls, doors, controls, hoses, cabinets, and walkways in both retracted and extended positions. Each rail is listed for up to 3 kg, but that load figure does not remove the need for clearance.
Can I use typical clearance numbers from another brand?
Use them only as prompts for questions, never as controlling requirements. Whirlpool, Samsung, and Maytag all direct users toward model-specific manuals or listings. Your washer manual, dryer manual, approved kit instructions, local rules, and installer determine the actual project requirements.
What should I send an installer before delivery?
Send both full model numbers, manual links, the proposed kit information, room and route dimensions, photographs of the empty alcove and utilities, door-swing measurements, and any known closet-ventilation details. Ask for confirmation of compatibility, kit choice, lift plan, utility scope, and service access.
Sources
- NIUXX W522 current product page for the current product title, width range, listed components, dimensions, and rail-load statements.
- Whirlpool: How to Stack a Washer and Dryer for model-specific approval, measuring categories, level placement, door access, and closet considerations.
- Samsung: Install a Washing Machine in Your Home for room preparation, utilities, level-floor guidance, door access, stacking order, and model-specific manual requirements.
- Maytag: Stackable Washer and Dryer Dimensions for width, height, depth, door, control, ventilation, hose, and closet measurement categories.
Measure the complete system, preserve the evidence behind every number, and let the strictest applicable instruction control. If W522 remains a documented candidate after those checks, compare the current product record with the installer and keep the final approved plan with your appliance manuals.
