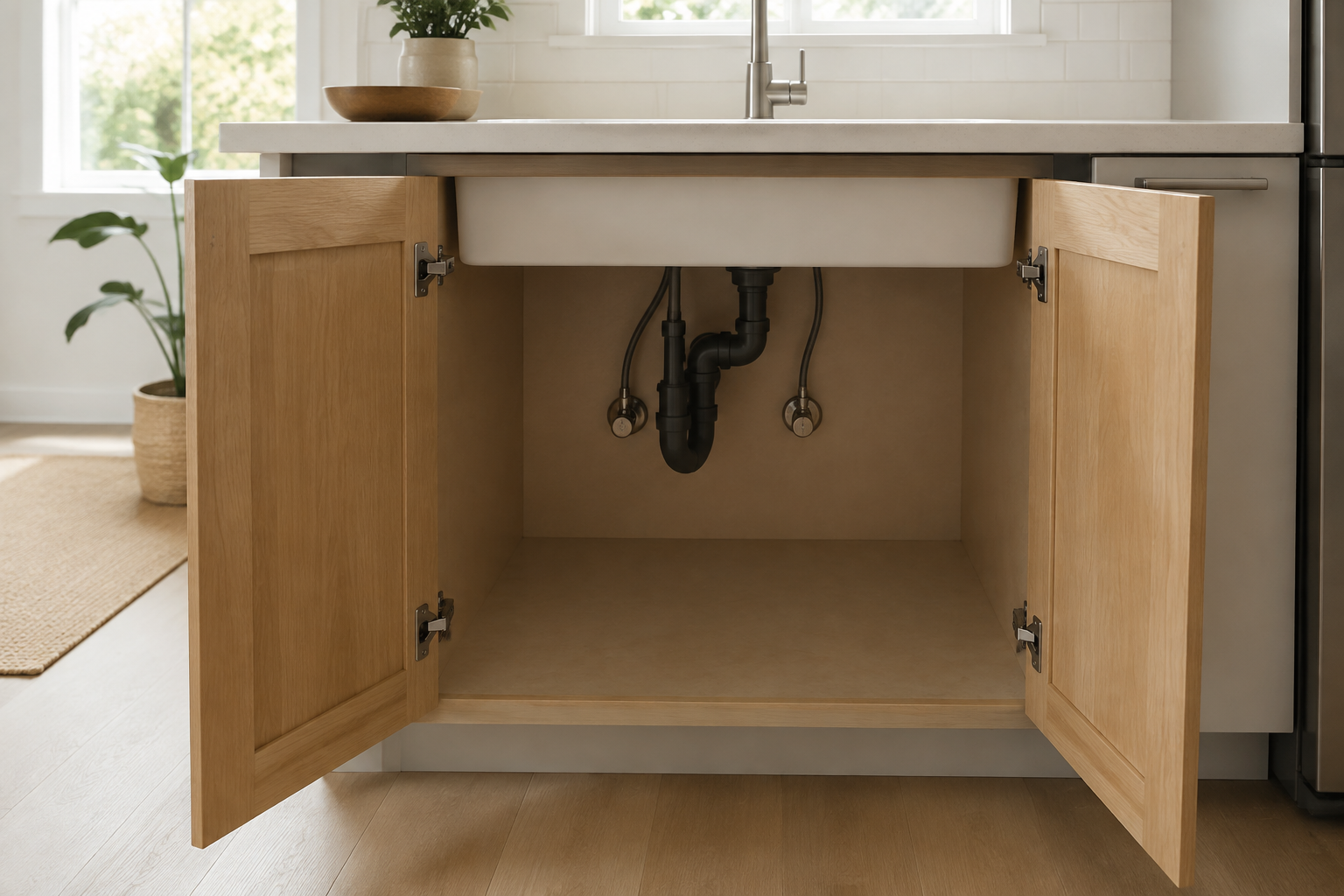

An under-sink cabinet can look roomy until a drain trap, supply line, disposal unit, hinge, face frame, or inward-swinging door occupies the exact space a pull-out organizer needs. The reliable way to choose an organizer is to measure the usable three-dimensional envelope, map every obstruction, and test the full travel path before ordering. Cabinet width alone is not enough.
This guide explains a repeatable measuring method for kitchen and bathroom sink cabinets. It also shows how to compare those measurements with the current NIUXX W200-1 listing without assuming universal fit. The W200-1 is one example, not a substitute for the organizer instructions, the cabinet construction, plumbing requirements, product labels, or professional advice when installation conditions are uncertain.
Start with the usable space, not the cabinet label
The quick answer is to measure the narrowest usable width, the shortest usable depth, and the lowest usable height inside the cabinet. Then reduce that theoretical box wherever plumbing, hinges, valves, wiring, filters, disposals, structural rails, or the door opening intrude. The result is an irregular working envelope, not one simple rectangle.
A cabinet sold as a particular nominal width does not necessarily provide that same clear opening. Face frames, double doors, center stiles, thick side panels, and concealed hinges can all reduce access. Even when an organizer fits inside, it may not pass through the opening or extend without touching the door. Measure the actual cabinet in its current condition.
Rev-A-Shelf's current cabinet-measuring guidance uses the same basic sequence: measure side to side, front to back, and top to bottom, then account for obstructions such as plumbing and hinges. That is a useful starting framework, but an under-sink pull-out adds another requirement: the space must remain clear throughout the moving parts' entire path.
| Measurement | Where to measure | What can reduce it | Decision rule |
|---|---|---|---|
| Usable width | Across the cabinet floor and at every shelf or frame level the organizer will occupy | Face frame, center stile, hinges, pipes, disposal body, door hardware | Use the narrowest relevant value, not the widest cavity |
| Usable depth | From the closed-door plane or front stop to the first rear obstruction | Door thickness, plumbing, rear wall, shutoff valves, cords, filter housings | Confirm both the parked position and the full slide path |
| Usable height | From the cabinet floor to the lowest fixed obstruction over the organizer | Sink bowl, drain trap, disposal, hoses, clips, countertop supports | Check each zone because the lowest point may not be centered |
| Opening width | Between door edges, frame members, or the narrowest entry point with doors fully open | Hinges, door stops, center stile, limited opening angle | The assembled parts must enter and the moving trays must clear |
| Travel clearance | From the organizer's parked position through its fully extended position | Door, handle, adjacent cabinet, wall, person route, loose plumbing | No contact, pinching, forced bending, or blocked access |
Empty, inspect, and document the cabinet first
Measure an empty cabinet. Bottles, bags, spare parts, and loose liners hide leaks and make obstructions look movable when they are not. Remove the contents, wipe the floor, and inspect the base, side walls, back panel, hinges, pipes, valves, electrical components, and fasteners under good light. Do not install storage over damp or damaged material.
Look for swelling, staining, soft cabinet board, corrosion, active drips, loose fittings, mold-like growth, pest damage, exposed wiring, or a floor that is no longer flat. An organizer does not repair these conditions. Stop and address a leak, electrical concern, structural weakness, or sanitation problem before measuring for a permanent layout.
Create a simple cabinet map. Record the inside opening, the floor footprint, the height below the sink, and the position of each obstruction relative to the left wall, right wall, front edge, and floor. A photo can help you remember the layout, but it does not replace measurements. Perspective can make clearances look larger than they are.
Use the same unit throughout the project. The current W200-1 record publishes dimensions in inches, so an inch-based worksheet avoids unnecessary conversion. If you measure in millimeters or centimeters, keep the original values and convert once at the comparison stage. Rounding a tight dimension too early can turn a marginal fit into a false pass.
- Remove every stored item and any loose liner that changes the floor height.
- Confirm the cabinet floor is dry, sound, reasonably flat, and able to support the intended installation.
- Identify fixed plumbing, shutoff valves, disposal equipment, filters, wiring, hinges, and structural rails.
- Note anything that must remain reachable for routine use, inspection, or emergency shutoff.
- Photograph the empty cabinet and write down the date and units used.
Measure width at every level the organizer uses
Under-sink width often changes with height. The floor may be wide while a hinge arm, pipe, cabinet lip, or basin underside narrows the space above it. Measure at floor level, at the proposed lower-tray height, and at the proposed upper-tray height. Repeat near the front, middle, and back of the cabinet.
For a multi-part organizer, map the left zone, center zone, and right zone separately. Do not assume a total width can be divided evenly. A drain may be centered while a disposal unit occupies one side, or supply valves may force one tower farther forward. The center opening and the side structures must each fit their own local envelope.
Record the narrowest usable width across the actual product footprint. If the cabinet has a center stile between two doors, measure each door opening as well as the full interior. A wide organizer may fit behind the stile only if its components can be assembled inside exactly as the manufacturer permits. Never assume the cabinet or product can be cut to make it pass.
Open both doors fully and watch the hinge arms. Concealed hinges often project into the cabinet even when the door is open. A side tray that appears to fit between the cabinet walls can collide with the hinge during extension. Preserve clearance for hinge movement rather than measuring only around the stationary hinge body.
Measure depth from the real closed-door plane
Depth should begin at the surface that limits the organizer when the door is closed. That may be behind the face frame, behind a door-mounted bumper, or farther back than the visible cabinet edge. Place no part where the closed door, hinge, or handle hardware presses against it. The organizer needs to park without loading the door.
At the rear, identify the first obstruction along each tray path. A rear wall may be farther away than a valve handle, drain elbow, filter canister, electrical outlet, hose loop, or plumbing clip. Use the shortest usable depth for each occupied zone. Leave the access required by those components and their own instructions.
Do not straighten, compress, reroute, or remove plumbing and cables merely to make a storage product fit. Flexible lines need appropriate routing, and shutoff valves must remain operable. If the proposed organizer requires changes to plumbing, electrical work, or cabinet structure, pause and consult the relevant qualified professional rather than improvising.
Depth also controls the pull-out path outside the cabinet. Open the door to its normal maximum angle and imagine the tray moving straight forward. Check whether a door edge, adjacent drawer pull, side wall, appliance, bath fixture, or narrow aisle would interrupt that motion. A pull-out that cannot extend far enough may not provide the expected access.
Map vertical clearance under the sink and plumbing
Measure height in zones because the sink underside is rarely flat. The basin may be deepest in the center, clips may hang lower near the rim, and a disposal or drain trap can create a much lower point. An organizer with side towers and a lower center tray may fit differently from a full-width shelf.
Start at the cabinet floor, including any fixed liner or raised threshold that the product will actually sit on. Measure to the underside of the sink, drain assembly, disposal, pipe, hose, valve, or bracket above each part of the proposed footprint. Do not push flexible parts upward to create a favorable number.
Then consider the contents. A frame may clear the plumbing while a tall bottle on the upper tray does not. Measure the standing height of each intended container with its cap, pump, trigger, or handle in the normal position. The moving tray and its contents need clearance during both extension and return.
Allow practical room to lift items in and out without striking the sink or pipes. The exact allowance depends on the product, container, and access route, so this guide does not invent a universal clearance figure. A dry run with representative empty containers can reveal whether a technically fitting space is actually usable.
Trace the entire pull-out path
A pull-out organizer must fit in motion, not only at rest. Trace the leading edge, side edges, upper corners, and contents from closed to fully open. Check the path at several extension points. The tray should not scrape the frame, catch a hinge, hit a door, bend a hose, or block a valve.
Knape & Vogt's installation instructions for a different base-cabinet organizer provide a useful general lesson: position the assembly, check door operation and clearances, and determine basket placement before fastening it. That document is not the W200-1 manual, so follow the instructions supplied with the exact NIUXX product for assembly and attachment. The transferable principle is to test before committing.
Use a removable floor outline or a cardboard footprint that matches the organizer's published depth and proposed width. Keep it flat and do not tape over damaged surfaces. Mark the projected tray edges and slowly operate the doors. If possible, hold empty containers above the outline to check their travel without loading the cabinet.
- Mark the proposed parked footprint on the cabinet floor.
- Confirm all fixed parts remain clear and accessible.
- Trace each tray's forward path through the door opening.
- Check the highest intended container at several extension points.
- Operate both doors and nearby drawers while the path is marked.
- Reject the layout if any part relies on pressure, bending, or contact.
Compare the cabinet map with the NIUXX W200-1
The current NIUXX W200-1 Shopify record describes an expandable two-tier under-sink organizer with two pull-out levels and a center tray for taller bottles. Its listed overall size is 21 to 27.9 inches wide by 15.51 inches deep by 14.06 inches high. These are product listing dimensions, not proof that it fits every cabinet in that range.
The listing identifies thickened polypropylene baskets and stainless-steel support tubes, with an open woven basket pattern. It does not provide an independently verified load rating in the current authoritative record used for this guide. Do not invent a capacity from the materials, photographs, another seller, or a similar organizer. Follow the supplied instructions and stop using any component that deforms, loosens, or moves unexpectedly.
First compare the W200-1's minimum listed width of 21 inches with the narrowest complete width available across its actual footprint. Next compare the listed 15.51-inch depth with the shortest usable depth in every occupied zone. Then compare the 14.06-inch listed height with the lowest obstruction above both side structures.
The adjustable maximum width of 27.9 inches should not be treated as a target. Set the product only within the current instructions and the cabinet's verified space. The support tubes, trays, central extension, and moving paths must remain correctly engaged. A cabinet wider than the product does not authorize improvised spacers or unsupported modifications.
Finally, verify access. The pull-out baskets must pass through the door opening and clear the hinges. The center tray must avoid the drain and remain usable for containers that fit below the plumbing. The cabinet floor must remain suitable, and all shutoffs and service points must stay reachable.
Plan what belongs in the cabinet
A successful fit does not make every stored item appropriate. The organizer is not a child-resistant enclosure, chemical cabinet, leak barrier, food-safe zone, or substitute for a product label. Decide what belongs under the sink only after reading the labels and considering children, pets, moisture, heat, food separation, and local disposal requirements.
The US Environmental Protection Agency advises following each hazardous household product's storage instructions, keeping such products in original containers with labels intact, and never mixing leftover products. EPA also notes that improper storage or disposal can create risks. Apply the exact label first; a convenient tray does not override it.
Poison Control advises keeping household laundry products out of children's sight and reach and in their original containers. The same access principle matters for cleaners stored under a sink. If a label calls for locked, elevated, ventilated, separated, or temperature-controlled storage, a low pull-out cabinet may be the wrong location.
Do not decant cleaners into attractive matching bottles merely to make the organizer look uniform. Do not place food, pet food, medicine, or personal-care items beside products whose labels require separation. If a container leaks, corrodes, swells, loses its label, or cannot close correctly, follow its manufacturer and local hazardous-waste guidance rather than returning it to the tray.
- Keep every product in its original, labeled, properly closed container unless its own instructions explicitly say otherwise.
- Separate incompatible products according to their labels; never mix leftovers.
- Keep hazardous products out of sight and reach of children and pets, using locked storage when required.
- Keep shutoff valves, disposal controls, filters, and service connections accessible.
- Use a different location for any item whose label conflicts with under-sink conditions.
Dry-fit and install without forcing a result
When the measurements pass, assemble the W200-1 only as its current supplied instructions direct. Confirm every component is present and undamaged. Do not substitute fasteners, drill holes, trim plastic, bend tubes, remove cabinet structure, or reroute utilities unless the exact instructions and qualified responsible professional permit the change.
Perform an empty dry-fit first. Set the width within the listed 21-to-27.9-inch range, place the organizer in the intended position, and move every tray through its normal travel. Open and close the doors. Reach each shutoff valve. Look from above, both sides, and the back with a light to confirm nothing touches.
If the product rocks, twists, catches, or needs pressure to pass an obstruction, stop. Recheck the assembly, floor condition, alignment, and cabinet map. A nearly fitting organizer is not a fit. Persistent interference means changing to a permitted layout or choosing a different product, not forcing the existing one.
After the empty mechanism works, test with representative empty containers. Place heavier or taller items only where the exact instructions allow and where they remain stable. Extend one tray at a time if that is what the supplied directions require. This guide does not claim that simultaneous extension, a particular weight distribution, or any maximum load is approved.
Commission the organizer in small steps
Add contents gradually rather than filling every tray at once. After each group, extend and close the moving parts, check balance, and inspect contact points. Containers should stand securely without leaning into pipes or rubbing the cabinet. Pumps and triggers should not operate accidentally when the tray moves.
Keep frequently used, label-compatible items where they can be removed without reaching past sharp hardware or live plumbing problems. Reserve the center space only for items whose height and width clear the drain throughout travel. Do not use an open tray to catch an active leak; repair the source and dry the cabinet first.
Check that the doors close normally and that no stored item presses on them. Confirm valves remain visible and operable. If a disposal, filter, or plumbing component requires service clearance, preserve it even when the remaining cavity appears useful. Storage volume is secondary to safe operation and maintenance access.
Watch the first several cycles closely. Stop if a tray drifts, binds, lifts, separates, or changes the routing of a hose or cable. Reinspect after the first cleaning session and after any plumbing service, because a moved line or replacement part can change the clear envelope.
Maintain the cabinet, organizer, and measurement record
An under-sink layout should be inspected regularly and whenever there is a leak, plumbing repair, cabinet adjustment, unusual odor, spill, impact, or change in stored products. Use the organizer's care instructions and the labels on stored items. Do not assume polypropylene, steel, or a woven basket pattern tolerates every cleaner or spill.
Remove contents before cleaning the organizer. Keep original labels with their containers, check caps, and look for residue. Clean and dry the cabinet and organizer using compatible methods only. Return items after every surface is fully dry and the moving path is clear.
Recheck the width setting, tube engagement, tray alignment, cabinet floor, and plumbing clearances. Compare the installation with the photos and measurements recorded before installation. If a pipe, disposal, hinge, or cabinet component has moved, repeat the fit test rather than assuming the former clearance remains adequate.
For a focused recovery process after water exposure, use the NIUXX guide to dry, clean, and reset an under-sink organizer after a leak. For access controls and household chemicals, read the separate guide to under-sink cabinet locks, chemical storage, and organizer limits.
Common measuring mistakes to avoid
The most common mistake is recording the cabinet's largest dimension instead of its smallest usable dimension. A second mistake is measuring the empty interior but ignoring the door opening. A third is checking the organizer at rest without checking its travel. Each mistake can make a product appear compatible on paper while it fails in use.
Another error is treating a staged product photograph as an installation drawing. Photos illustrate appearance, not universal plumbing clearance, exact scale, approved contents, load capacity, or cabinet construction. Use current published dimensions, the exact instructions, and your own measured geometry.
Do not measure around movable clutter while leaving it in place. Remove the clutter and identify whether each remaining object is fixed, serviceable, or prohibited from contact. Do not move pipes or valves for convenience. Do not rely on a door that can open wider only when an adjacent appliance or wall protection is removed.
Finally, do not buy from width alone. An organizer can match a 21-inch opening yet fail because it is too deep, too tall below the sink, blocked by a hinge, unable to extend through the doorway, or incompatible with the cabinet floor. The fit decision must pass all layers together.
Frequently asked questions
What measurements do I need for an under-sink organizer?
Measure the narrowest usable width, shortest usable depth, and lowest usable height across the organizer's full footprint. Also measure the door opening, hinge intrusion, and the complete extension path. Map pipes, valves, disposal equipment, filters, wiring, and service areas. The usable envelope is the space left after all those constraints are applied.
Should I measure the cabinet opening or the inside?
Measure both. The interior determines whether the organizer can sit inside, while the opening determines whether components can enter and whether trays can extend. A center stile, face frame, hinge, or limited door angle can make the opening much narrower than the interior cavity.
How much clearance should I leave around pipes?
There is no universal number in this guide. Follow the plumbing component instructions, the organizer instructions, and any service requirements. Leave enough room that no tray or stored item touches, bends, loads, blocks, or hides the pipe, valve, hose, disposal, filter, or connection during normal movement.
What are the listed dimensions of the NIUXX W200-1?
The current Shopify record lists the W200-1 at 21 to 27.9 inches wide, 15.51 inches deep, and 14.06 inches high. Those values must be compared with the actual usable cabinet envelope. They do not guarantee that the organizer will clear your plumbing, hinges, door opening, or travel path.
Does the W200-1 have a published load capacity?
The current authoritative NIUXX record used for this article does not provide an independently verified load rating. This guide therefore does not state one. Follow the current supplied instructions, distribute contents only as permitted, and stop using the organizer if a component bends, loosens, separates, or moves unexpectedly.
Can I store household cleaners in an under-sink organizer?
Only when each product label permits that location and the household access conditions are appropriate. EPA advises following label storage instructions, keeping hazardous products in original labeled containers, and not mixing leftovers. Poison Control recommends keeping relevant products out of children's sight and reach. A pull-out organizer is not child-resistant storage by itself.
Can I install an organizer if the cabinet floor is damp?
No. Identify and correct the moisture source, then clean, dry, and assess the cabinet material before installation. Swelling, softness, corrosion, active drips, mold-like growth, or electrical concerns require appropriate attention. An organizer can hide damage and does not repair a leak.
What if the organizer fits inside but will not pull out fully?
Treat that as a failed fit unless the exact product instructions define a different approved travel. Recheck the opening, hinges, door angle, adjacent fixtures, and alignment. Do not force the tray, modify the door, or remove structural parts merely to create travel. Choose another permitted layout or product when necessary.
Should I use the product photos to decide where bottles go?
No. Product photos can show structure and one staged arrangement, but they do not override container labels, cabinet measurements, manufacturer instructions, or household access needs. Select contents by label compatibility, actual container dimensions, stability, travel clearance, and safe access.
Sources and further reading
- Current NIUXX W200-1 product record
- Rev-A-Shelf cabinet measurement guidance and obstruction reminder
- Knape & Vogt base-cabinet organizer installation instructions
- US EPA household hazardous waste storage and handling guidance
- Poison Control guidance on storing household laundry products
- NIUXX guide to general under-sink organization and safety
- NIUXX guide to under-sink leak recovery and organizer reset
- NIUXX guide to cabinet locks, chemicals, and organizer limits
Measure the real path before choosing the product
A useful under-sink organizer fits the narrowest cabinet zone, enters through the opening, clears every fixed obstruction, moves without contact, preserves service access, and holds only appropriate contents. That conclusion comes from a cabinet map and a dry run, not a nominal cabinet label or staged photograph.
If your measured envelope supports the listed 21-to-27.9-inch width, 15.51-inch depth, 14.06-inch height, multi-zone structure, and pull-out paths, review the current NIUXX W200-1 product details and supplied instructions. Buy only when the current record, your cabinet measurements, plumbing access, and storage requirements all agree.
